Blast hole surface dth rock drilling rig machine price China

Short Description:

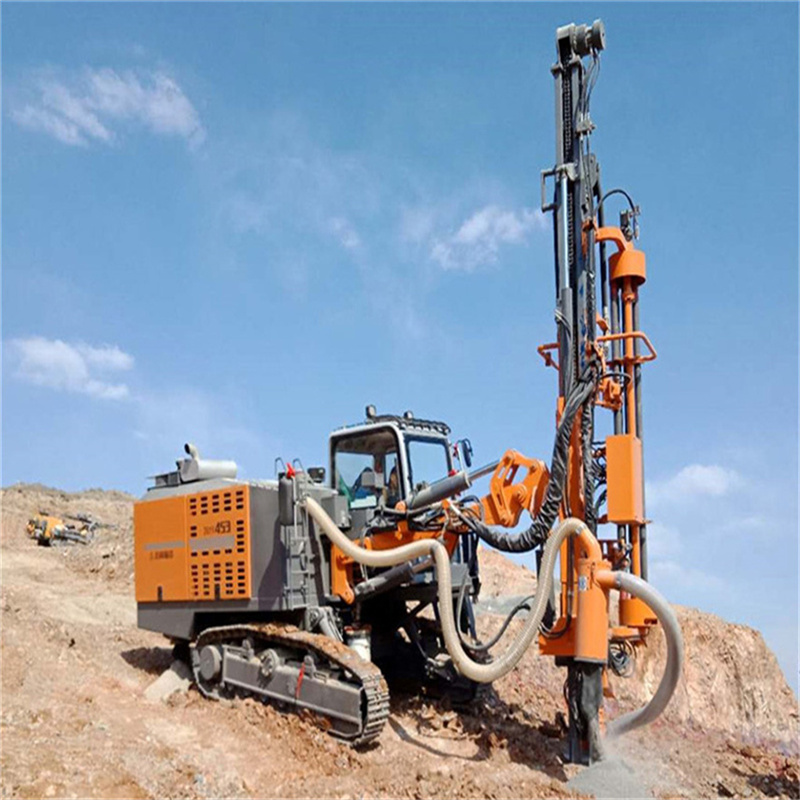

TDS New Generation Internal Combustion Crawler Hydraulic DTH Drilling Rig is mainly used in blasthole drilling task, such as hydropower construction, open-pit mining, road construction and national defense construction.


Product Detail

Product Tags

Product overview TDS down the hole drill rig for open use is an improved device in compliance with national regulations on environmental
protection. Equipped with the Yuchai engine (China 3), the drill rig meets national standards for emissions and environmental. The
ramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pith and
lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is
improved, thereby proving increased system flow and rotary. The hydraulic cylinder has been optimized, thus making it more
reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used
for the housing; and the additional ring makes handling and lifting convenient.

Specification

Rig model ZGYX-415-1
Power
YUCHAI
Rated power 58KW
Drill pipe size
Φ60*3000MM
Hole range
Φ90-115mm
Rotation torque
1850N.M
Rotation speed 0-110RPM
Feed force
 15KN
Pull up force
25KN
Feed type
CYLINDER
Tramming speed
2.5KW/H
Gradient
25
Weight
4500KG
Size
4900*2000*2200MM

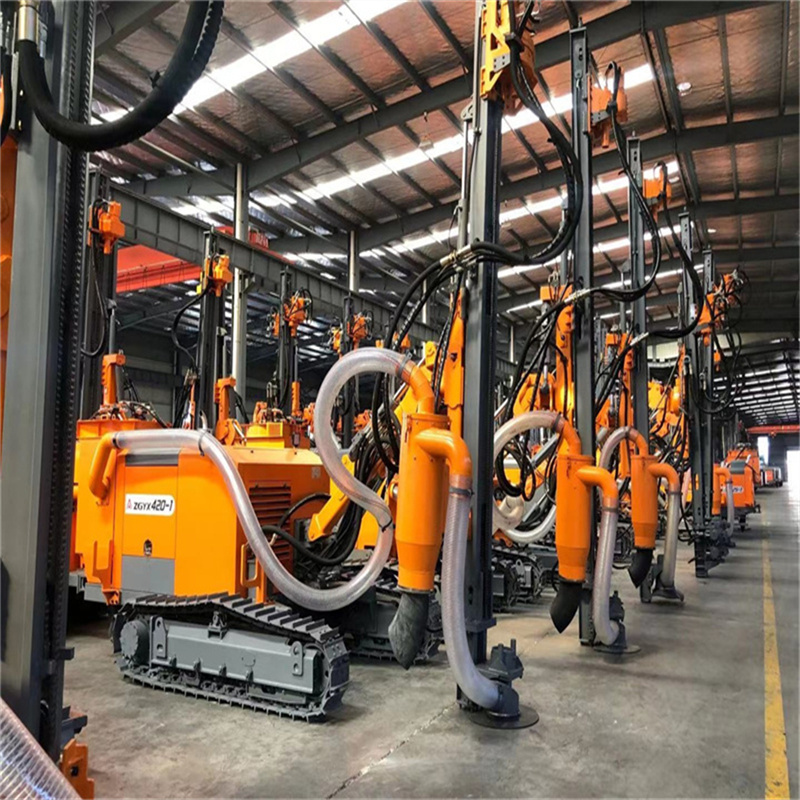

ZGYX420-16
