Mining down the hole drilling rig drilling machine

Short Description:

TDS high pressure DTH drill powers the moving of the oil hydraulic motor, rotation, propelling and lifting, swing angle location and so on by diesel (electronic motor) driving the hydraulic oil pump.

The down the hole hammers consume the pressured air only when drilling. It can save energy (fuel oil or electric quantity) as 40%~50% as the total pneumatic drill. GL-120Y is good for blasting hole in surface mine, water electric building, road construction and stone project.

Message Email

Product Detail

Product Tags

TDS down the hole drill rig for open use is an improved device in compliance with national regulations on environmental.

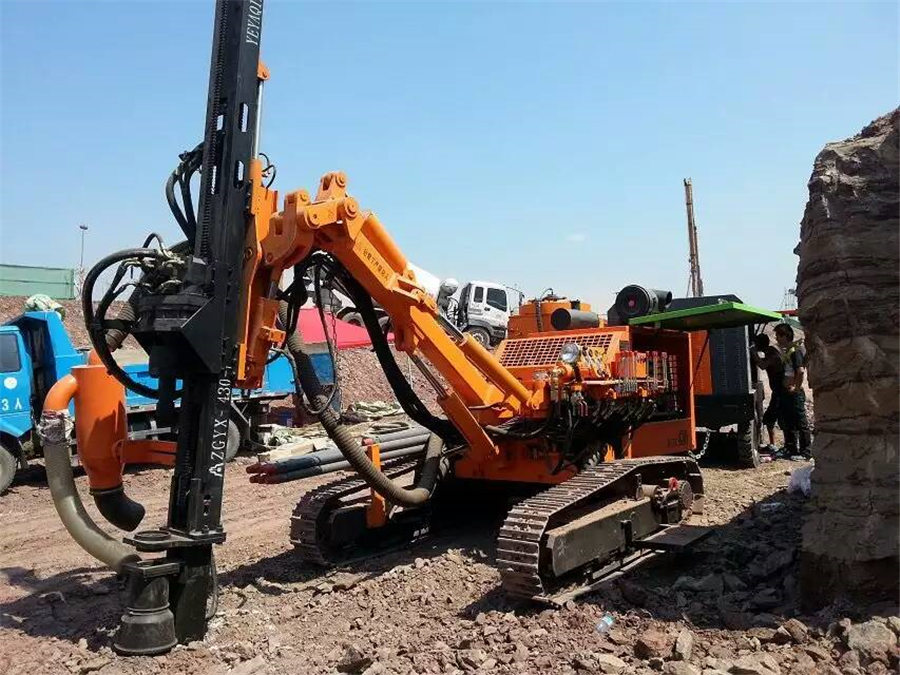

TDS New Generation Internal Combustion Crawler Hydraulic DTH Drilling Rig is mainly used in blasthole drilling task, such as hydropower construction, open-pit mining, road construction and national defense construction.

Rig model	ZGYX-415-1
Power	YUCHAI
Rated power	58KW
Drill pipe size	Φ60*3000MM
Hole range	Φ90-115mm
Rotation torque	1850N.M
Rotation speed	0-110RPM
Feed force	15KN
Pull up force	25KN
Feed type	CYLINDER
Tramming speed	2.5KW/H
Gradient	25
Weight	4500KG
Size	490020002200MM
