OEM Manufacturer Water Well Drilling Rig Factory – Borehole Dth Rock Drilling Rig Machine On Sale – TDS Detail:

Product overview 1. Cab
Spacious, wide field of vision, humanized cab, emphasizing safety performance, front window protection fence.
2. Double motor swivel head
Cycloidal hydraulic dual-motor slewing head, with large output torque and extremely low failure rate.
3. Disc automatic rod changer
The disc automatic rod changer allows free selection of drill rods and prolongs the life of the drill tools. The patented floating hose reel eliminates the concentrated point of tubing deformation and prolongs the service life.
4. Propelling beam
The cylinder is propelled by steel wire rope, the propulsion force is controlled with high precision, and the rotary head runs
smoothly Can drill various intermediate angle holes and horizontal sole holes.
5. Dust removal device
Chigo’s two-stage dust removal technology leads the industry. Dust removal and cleaning filter area is large, automatic continuous self-cleaning dust removal. The dust filter element array can be easily disassembled, and the maintenance efficiency is high; The integrated cover can slide up and down to clearly observe the opening situation and perform opening control.
6. Strong traction
Tracked heavy-duty chassis, track frame hydraulic swing device swing frame ±10°; Great traction, enough off-road ability to
improve the efficiency of the special field.Specification

Rig model ZGYX-423
Power YUCHAI
Rated power 162KW
Drilling depth 30m
Drill pipe size Φ68*3000MM
Drill pipe storage 7+1
Hole range Φ90-115mm
Rotation torque 2540N.M
F.A.D
12M3/MIN
Working pressure 17bar
Feed force 20KN
Feed type CHAIN/CYLINDER
Tramming speed 3KW/H
Gradient 30
Weight 13000KG
Size 9000*2360*3000MM

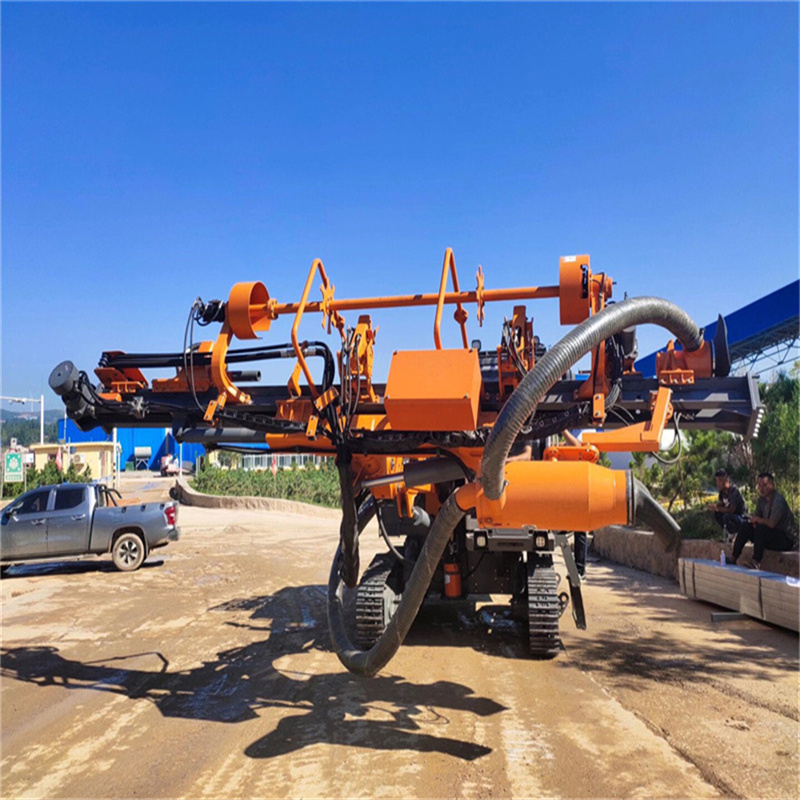

IMG_4211

Packing packing


Product detail pictures:

OEM Manufacturer Water Well Drilling Rig Factory – Borehole Dth Rock Drilling Rig Machine On Sale – TDS detail pictures

OEM Manufacturer Water Well Drilling Rig Factory – Borehole Dth Rock Drilling Rig Machine On Sale – TDS detail pictures

OEM Manufacturer Water Well Drilling Rig Factory – Borehole Dth Rock Drilling Rig Machine On Sale – TDS detail pictures

OEM Manufacturer Water Well Drilling Rig Factory – Borehole Dth Rock Drilling Rig Machine On Sale – TDS detail pictures
